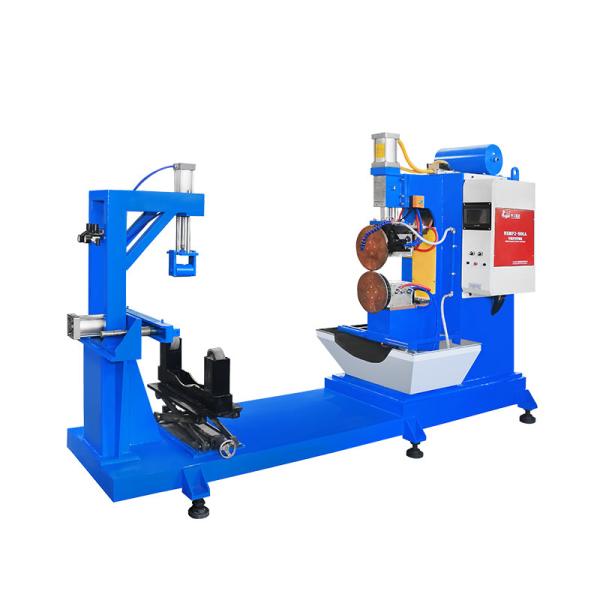

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Guangdong Hwashi Technology inc.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank from wholesalers

    Buy cheap Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank from wholesalers
    • Buy cheap Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank from wholesalers
    • Buy cheap Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank from wholesalers
    • Buy cheap Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank from wholesalers

    Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

    Ask Lasest Price
    Brand Name : Hwashi
    Model Number : WL-AMF-160K
    Certification : CE,CCC,ISO
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

    Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank
    Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank
    Product Description
    This production line is suitable for oil tank manufacturer, including the straight seam welding machine, the circular seam welding machine, the spot welding machine, the pressure test welding machine. The production line can customzied according to your product size and requirement. If you need our help, just send us your product specification and drawings.

    1. Straight Seam Welding Machine(for the straight line welding of the oil tank)

    2. Circular Seam Welding Machine(for the two ends welding of oil tank)
    3.Long Arm Spot Welding for the Middle Plate
    4.Pressure Test Machine(for testing if the seal of oil )
    Specification
    Model
    WL-FS-200K
    WL-FS-MF160K
    Input Voltage
    380V±10% 50Hz
    380V±10% 50Hz
    Input Power
    200KW
    160KW
    Max Short Circuit Current
    38000A
    40000A
    Rated Duty Cycle Rate
    25%
    50%
    Welding Stored Models
    16 types
    101 types
    Electrode Pressure
    9kN(I),1.8kN(II)
    9kN(I),1.8kN(II)
    Rated Bleed Pressure
    0.6MPa
    0.6MPa
    Gas Consumption
    5m3/h
    5m3/h
    Water Source Pressure
    0.2Mpa
    0.2Mpa
    Cooling Water Consumption
    200L/H
    200L/H
    Welding Wheel Diameter
    200mm
    200mm
    Welding Wheel Width
    3mm
    3mm
    Welding Wheel Rotate Speed
    800-4000mm/min (adjustable)
    800-4000mm/min (adjustable)
    Welding Wheel Throat Depth Distance
    1000mm
    1000mm
    Upper and Lower Welding Wheel Distance
    100mm
    100mm
    Feeding Rack Rotate Speed
    500-1000mm/min (adjustable)
    500-1000mm/min (adjustable)
    Quality Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank for sale
